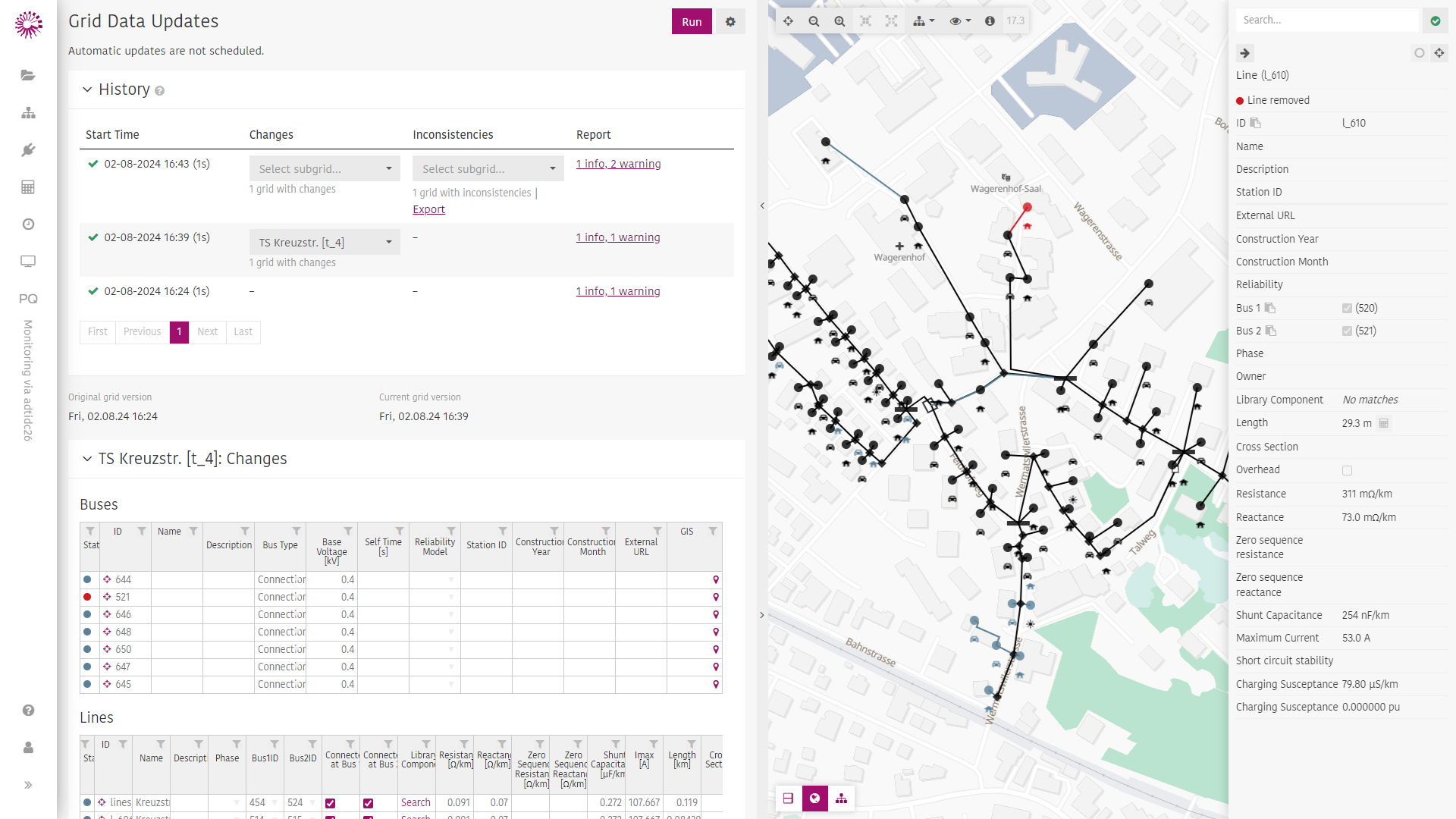

Grid Data Updates

The Grid Data Updates page shows the history of the automatic grid data updates if the grid data import over API is set up.

The Grid Data Update can be started manually by clicking .

The automatic update can be scheduled in the Data Integration section of the Project Settings. The Project Settings are access by clicking on .

History

The history shows an overview of all updates perfomed in the past. For each update progress the success state and the start time are displayed.

Changes

Any changes in grids between consecutive updates are reflected in the Changes column. A dropdown lists all changed grids. Clicking on one of the grids in the drowpown opens the grid in the map view on the right. A tabular view of all changed grid elements for the selected grid is shown below.

Changed components will be colored in the table and the map view as follows:

Status	Description
	an attribute of a component was modified
	a component was deleted
	a component was added

Clicking on next to the element ID centers the map view onto that element.

A grid being changed has several implications, some changes are considered irrelevant.

Inconsistencies

All inconsistent grids can be viewed in the Inconsistencies column. Clicking on a grid from the dropdown list will open the grid in the map view. A full list of inconsistencies can be downloaded by clicking on Export. The warnings need to be resolved in order to have a consistent grid.

Report

The Report column will show a detailed report of the infos and warnings during the Grid Data Update
